CE 3kW Portable EV Charger 16A IP67 with 5m Cable

Nama merek:	ANS
Nomor Model:	EVA03B
MOQ:	1
Rincian kemasan:	15,7153,15(dalam)
Ketentuan Pembayaran:	L/C, T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Nama Produk:

CE 3KW Portabel EV Charger

Jenis:

Pengisi Daya EV Portabel

berat:

2.1KG

Nilai saat ini::

Frekuensi nilai:

50Hz/60Hz

Kabel Pengisian:

Stardard:

EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017

Warna Kabel:

Hitam atau kustomisasi

Perlindungan:

Sertifikasi:

Menyediakan kemampuan:

100000pcs/bulan

Menyoroti:

IP67 portable EV charger

3kw portable EV charger

CE portable EV charger with cable

Deskripsi Produk

IP67 3kw CE Portable Home Ev Charger With Standard configuration 5m Charging cable

Product Description

Weighing just 2.1kg and featuring a compact design, the EVA03B is one of the most portable EV chargers on the market. Its 5-meter cable provides flexibility for hard-to-reach charging points. The product includes adjustable current settings, delayed charging, and touch-key controls for enhanced usability. Constructed with high-quality tempered glass and PC materials, it is both elegant and resilient. Whether for daily commutes or long trips, the EVA03B offers a perfect blend of portability, power, and protection for modern electric vehicles.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.1kg
Colour&Material	Black;Tempered Glass,PC

Features

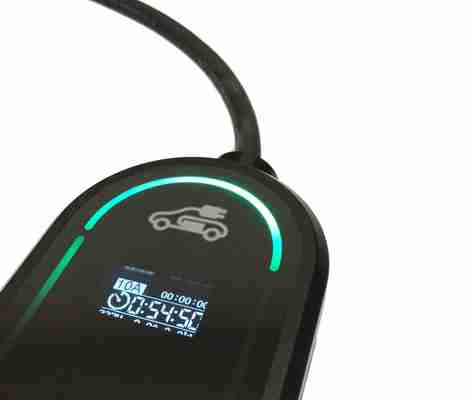

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

CE 3kW Portable EV Charger 16A IP67 with 5m Cable 0

CE 3kW Portable EV Charger 16A IP67 with 5m Cable 1

LED Indicators

CE 3kW Portable EV Charger 16A IP67 with 5m Cable 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

CE 3kW Portable EV Charger 16A IP67 with 5m Cable 3

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Packaging

Our Certification

Exhibition
CE 3kW Portable EV Charger 16A IP67 with 5m Cable 6

Visits from Various Countries (looking forward to your arrival)

CE 3kW Portable EV Charger 16A IP67 with 5m Cable 7
