7.4kW 32A Portable EV Charger with IP67 & Delay Charging

Semua Kategori

Kabel Pengisian EV Tipe 1 Ke Tipe 2

Kabel Pengisian EV Tipe 2 ke Tipe 2

Stasiun Pengisian EV DC

Hubungi kami

Ms. Alice Wang

info@cn-ans.com

+8615881062591

Hubungi sekarang

7.4kW 32A Portable EV Charger with IP67 & Delay Charging

Nama merek:	ANS
Nomor Model:	EVA07B
MOQ:	1
Rincian kemasan:	15,7153,15(dalam)
Ketentuan Pembayaran:	L/C, T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Dokumen:

Nama Produk:

Charger EV portabel dengan penyesuaian pengisian daya penundaan

Sertifikasi:

Nilai saat ini::

Jenis:

Pengisi Daya EV Portabel

berat:

2.9kg

Frekuensi nilai:

50Hz/60Hz

Fitur utama:

Dengan layar LED dan penyesuaian pengisian daya tunda

Perlindungan:

Menyediakan kemampuan:

100000pcs/bulan

Menyoroti:

32A portable EV charger

7kw EV charger with LED display

portable EV charger with delay charging

Deskripsi Produk

IP67 7kw CE Portable Home Ev Charger With Standard configuration 5m Charging cable

Product Description

The EVA07B is a high-power portable EV charger designed for efficient and flexible electric vehicle charging. With a maximum output of 7.4kW at 230V/32A, offering broad compatibility for users across different regions.

Complying with IEC 62752:2016/COR1:2019 and carrying CE certification, this charger guarantees safety and performance. It incorporates comprehensive protections including over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection, along with a built-in Type B RCD for enhanced electrical safety.

The intuitive OLED screen and LED indicators provide real-time charging status, while features like adjustable current and delay charging settings allow users to optimize energy usage. Despite its high power, the EVA07B remains highly portable—weighing just 2.9kg and featuring a compact control box (200x90x52mm). Its IP67 rating ensures reliable operation in diverse environments, from -30°C to 60°C and up to 95% humidity. The 5-meter cable adds convenience, making it an ideal charging solution for both daily use and travel.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA07b
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 7.4kW(@230V 32A)
Max.output current	32A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.9kg
Colour&Material	Black;Tempered Glass,PC

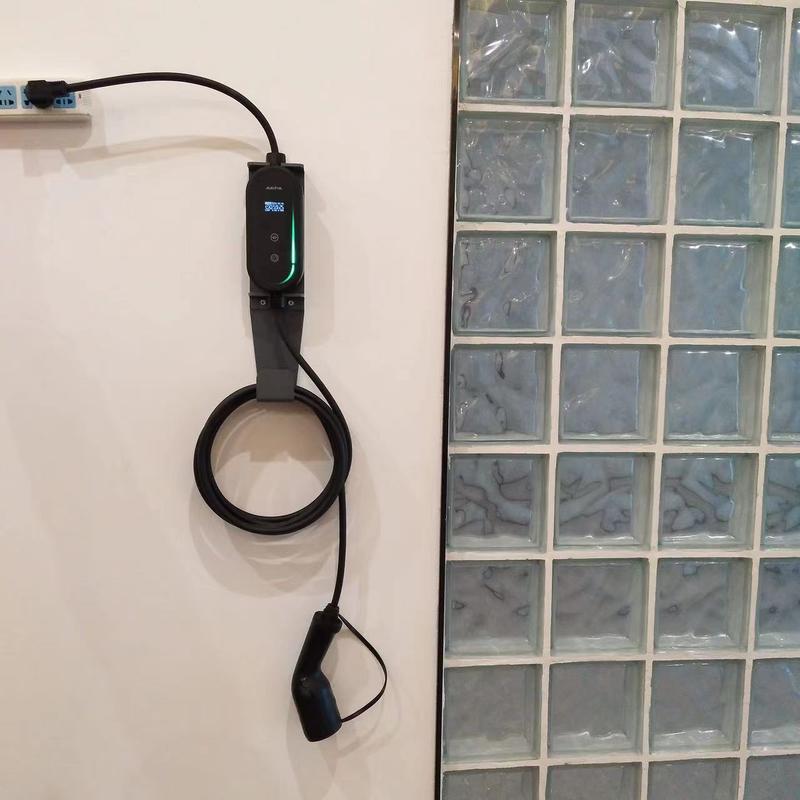

How to install

7.4kW 32A Portable EV Charger with IP67 & Delay Charging 0

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

Packaging

Our Certification

Exhibition
7.4kW 32A Portable EV Charger with IP67 & Delay Charging 4

Visits from Various Countries (looking forward to your arrival)

7.4kW 32A Portable EV Charger with IP67 & Delay Charging 5
