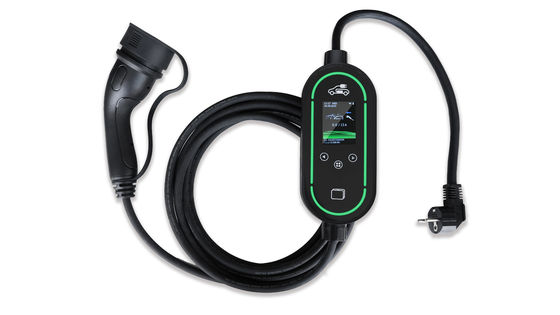

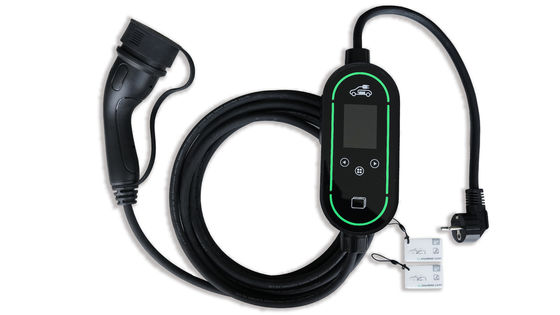

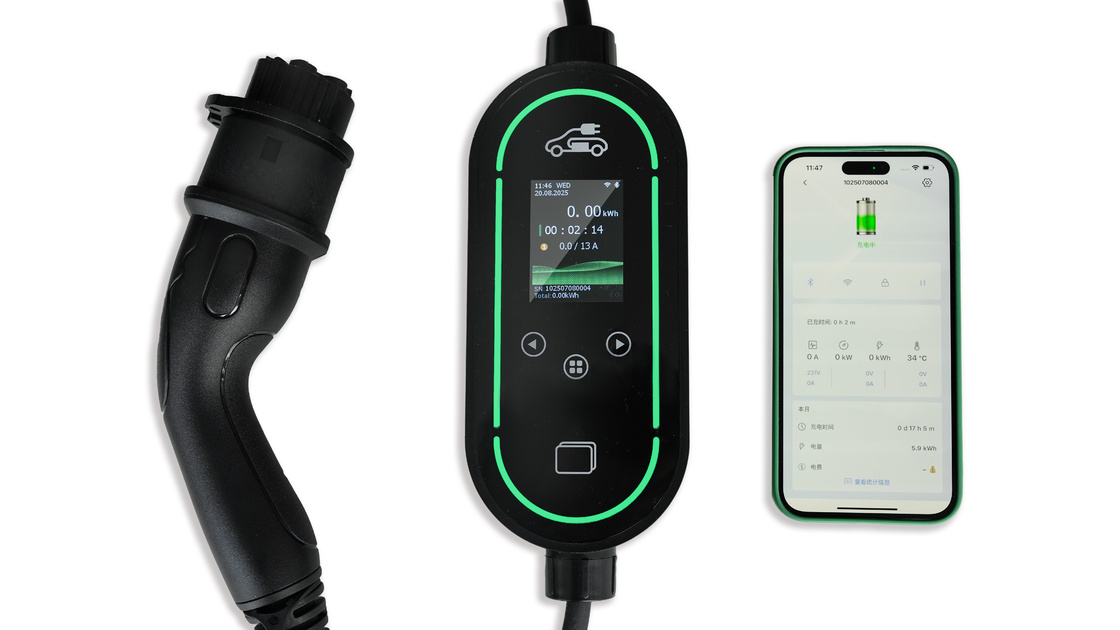

7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material

Semua Kategori

Kabel Pengisian EV Tipe 1 Ke Tipe 2

Kabel Pengisian EV Tipe 2 ke Tipe 2

Stasiun Pengisian EV DC

Hubungi kami

Ms. Alice Wang

info@cn-ans.com

+8615881062591

Hubungi sekarang

7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material

Nama merek:	ANS
Nomor Model:	EVB07B
MOQ:	1
Rincian kemasan:	15,7153,15(dalam)
Ketentuan Pembayaran:	L/C, T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Nama Produk:

Pengisi Daya EV Portabel AC 7kw

Jenis:

Pengisi Daya EV Portabel

berat:

Wifi:

2,5 GHz

Fitur utama:

Layar LCE 2,4 inci

Warna Kabel:

Hitam atau kustomisasi

Perlindungan:

Sertifikasi:

Menyediakan kemampuan:

100000 buah/bulan

Menyoroti:

2.4-inch LCD Screen Portable EV Charger

5m Charging Cable Electric Vehicle Charger

Flame Retardant PC Material EV Charging Cable

Deskripsi Produk

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

Date and Time,Charging time,Consumption(kWh)

Charging voltage / current / power,Total electricity(kWh),Temperature

Multi national language selection

Current adjustable from 6A to 32A in steps of 1A

Appointment for charging (based on week and time)

The screen and LED can automatically turn off according to the set time

APP remote control (Bluetooth and WIFI)

Charging mode (RFID/APP/Password/Plug and Play)

Charging history (up to 30 records)

Load control, adjustable phase number and current (ModBus TCP)

Specificaiton

Product Model EVB07B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 7.36kW(@230V 16A)
Max.output current	32A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material 0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material 2

Packaging

Our Certification

Exhibition
7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material 5

Visits from Various Countries (looking forward to your arrival)

7kW Portable EV Charger with 2.4-inch LCD Screen 5m Charging Cable and Flame Retardant PC Material 6
